Upper Hood Steel Structures For ACC Air-Cooled Condenser Buildings

Time:2025-05-24 14:23:09

Detail Introduction

Upper Hood Steel Structures For ACC Air-Cooled Condenser Buildings

Upper Steel Structures (ACC, Hood Type Building) with Bird Protection Net at GEX 3300-Emir-33MW Geothermal Power Plant, Turkey

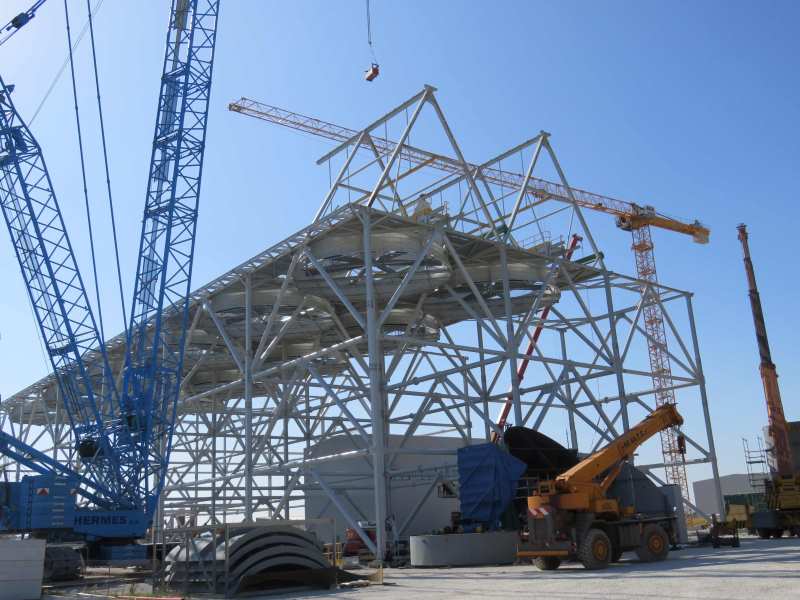

Upper Hood Steel Structures For ACC Air Cooled Condenser Buildings 01

1. Scope

The structure includes Air-Cooled Condenser (ACC) and Hood Type Building steel frameworks, designed to support bird protection nets. All components are fully bolted, hot-dip galvanized per ISO 1461, and fabricated using high-strength Grade 8.8 bolts.

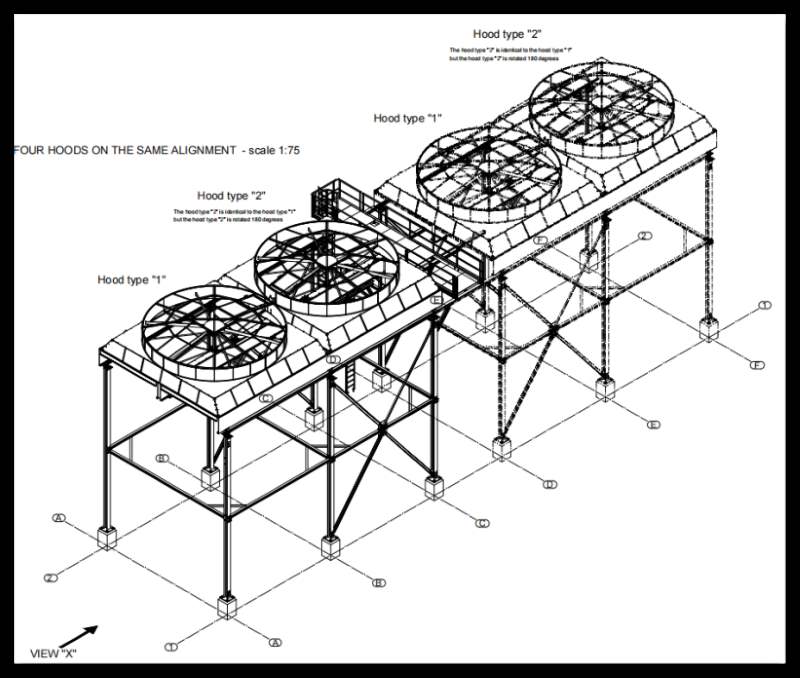

Upper Steel Structures ACC Hood Type Building with Bird Protection Net 02

Upper Steel Structures ACC Hood Type Building with Bird Protection Net 02

2. Key Components

Steel Framework:

Channels: UPE/UPN profiles for primary support beams.

Angles: L-shaped sections for bracing and secondary supports.

Plates: Connection plates, gussets, and base plates (thickness as per load calculations).

Bird Protection Net:

Mesh material (e.g., stainless steel or UV-stabilized polypropylene, if unspecified).

Attached to the steel framework via galvanized clamps or hooks.

GEX 3300 Emir 33MW Geothermal Power Plant Turkey 03

GEX 3300 Emir 33MW Geothermal Power Plant Turkey 03

3. Material Specifications

Steel: Grade S235JR/S355JR (EN 10025) or equivalent.

Hot-Dip Galvanizing: Coating thickness ≥ 85 µm (ISO 1461 compliance).

Post-fabrication galvanizing to ensure full coverage.

Fasteners:

Bolts: Grade 8.8 (M12–M24), hot-dip galvanized.

Nuts/Washers: Grade 8 galvanized, matching bolt specs.

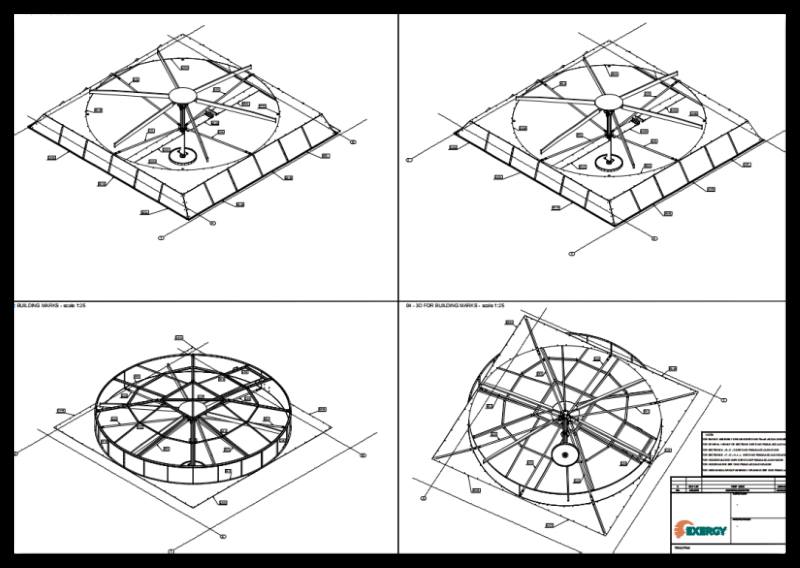

Air Cooled Condenser ACC and Hood Type Building steel frameworks 04

Air Cooled Condenser ACC and Hood Type Building steel frameworks 04

4. Design Considerations

Load Requirements:

Wind loads (per Turkish Building Code/EN 1991-1-4).

Seismic loads (Turkey Zone 2/3 compliance).

Dead load of structure + netting.

Corrosion Resistance:

Critical for geothermal environments (high humidity/H₂S exposure).

Double-check galvanizing quality at weld-free zones (if any).

Modularity:

Pre-drilled holes for bolted assembly; tolerance ±2mm.

Allow for future maintenance access.

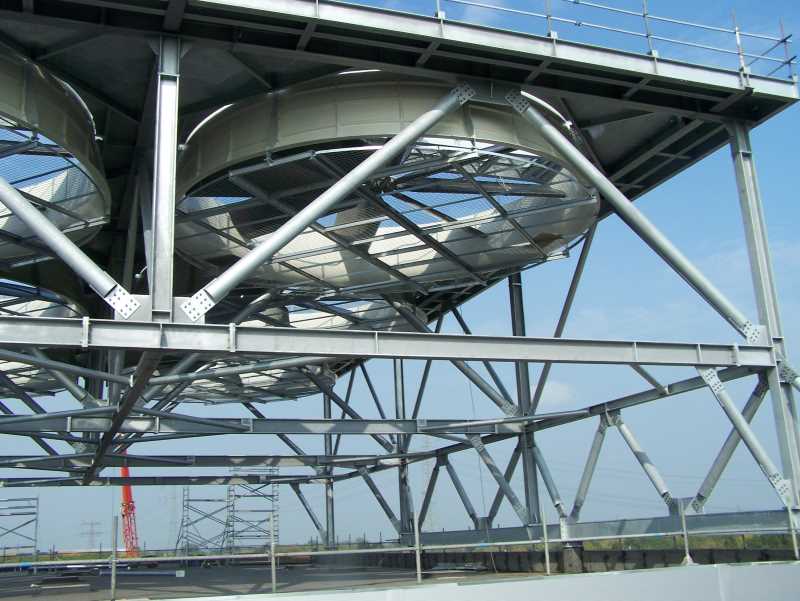

hot dip galvanized ISO 1461 fabricated using high strength Grade 05

hot dip galvanized ISO 1461 fabricated using high strength Grade 05

5. Fabrication & Installation

Fabrication Steps:

Cut, drill, and label all steel components.

Galvanize after fabrication to avoid coating damage.

Pre-assemble modules for quality checks.

Installation:

Erect primary steel structure using cranes.

Bolt connections tightened to 70% of proof load (per EN 14399).

Attach netting with tensioning systems to prevent sagging.

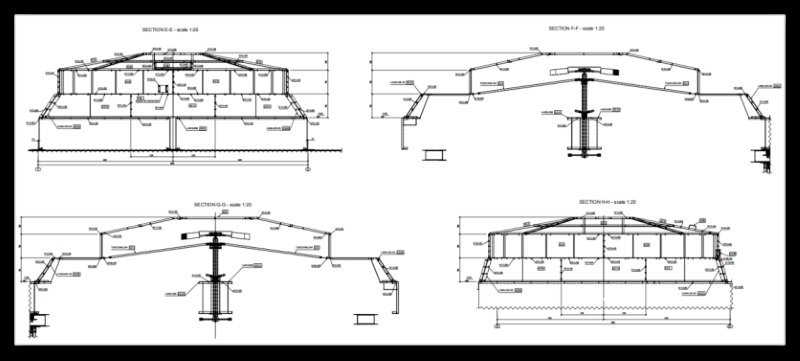

Steel Framework Channels Angles Plates Bird Protection Net Mesh 06

Steel Framework Channels Angles Plates Bird Protection Net Mesh 06

6. Compliance & Testing

Standards:

ISO 1461 (galvanizing), EN 1090 (steel fabrication), EN 1993 (design).

Turkish seismic codes (TEC 2018).

Quality Control:

Mill certificates for steel.

Coating thickness tests (magnetic gauge).

Bolt torque testing (30% random checks).

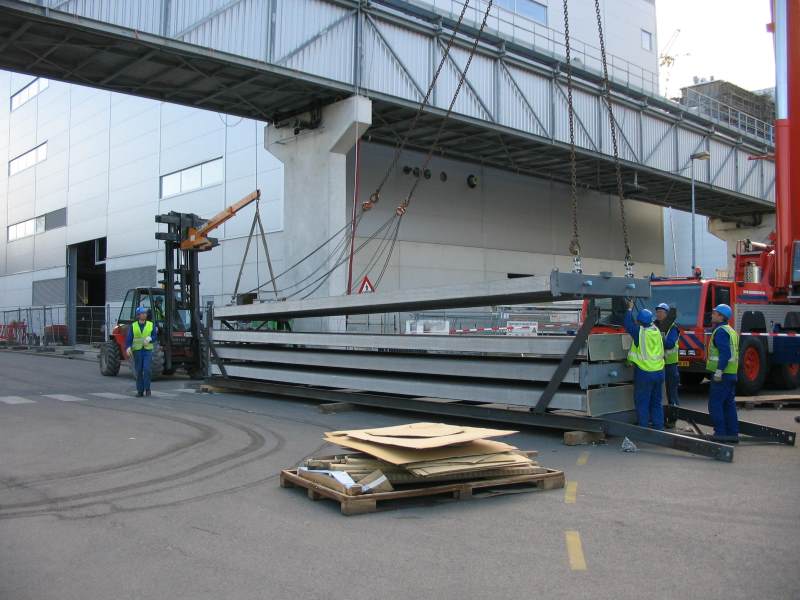

Modularity Design Fabrication Packing Transportation 07

Modularity Design Fabrication Packing Transportation 07

7. Challenges & Solutions

Galvanizing Tolerance:

Oversize bolt holes by 2mm to accommodate zinc buildup.

Net Durability:

Specify nets with anti-corrosion coatings if non-stainless.

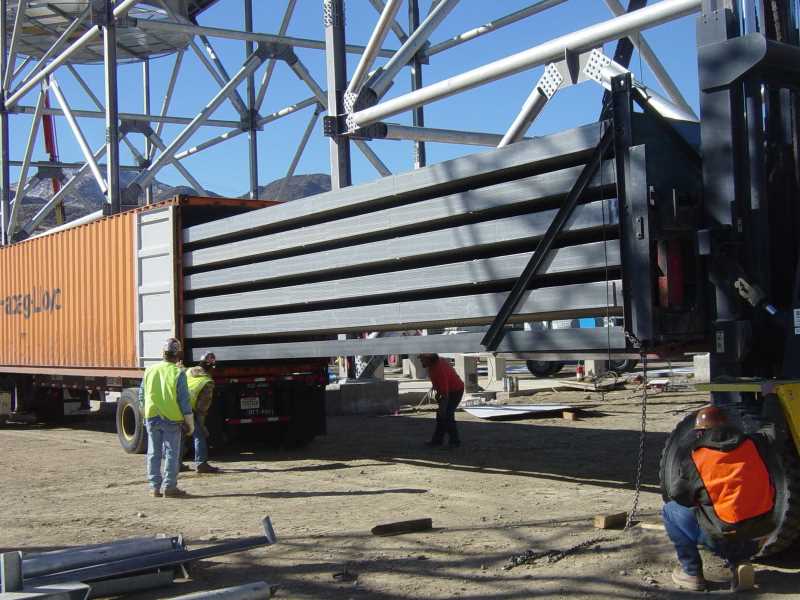

Erect primary steel structure Container Loading 08

8. Deliverables

As-built drawings.

Galvanizing inspection reports.

Bolt/nut certification (Grade 8.8).

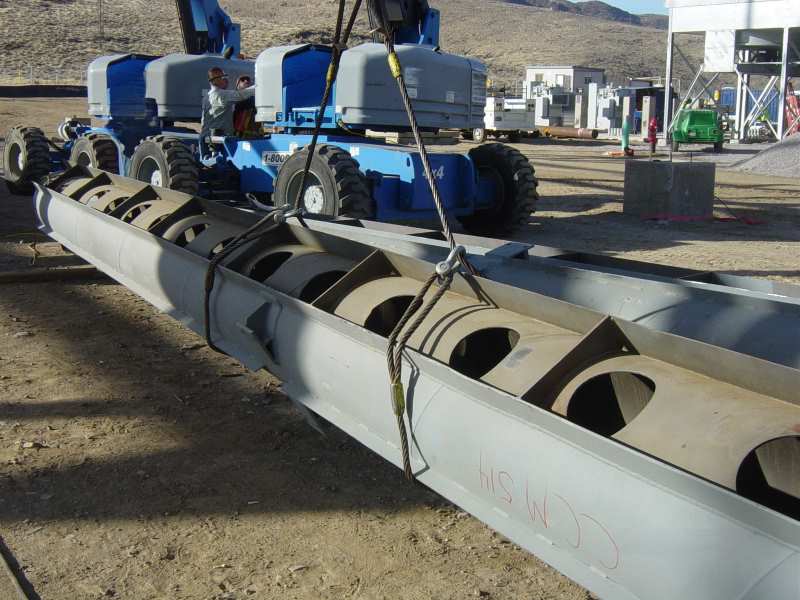

Substructures Calletral Beam Packing ACC Steel Structures 09

Steel Duct Air Cooled Condenser ACC Plateworks 10

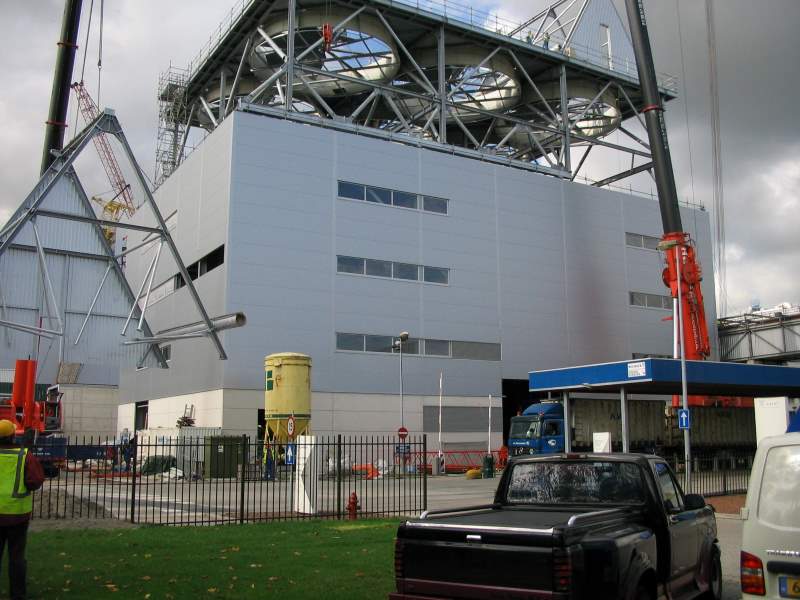

We ZHM, specialize in manufacturing and erecting air-cooled condensers according to customers’ specifications.

Substructures
Steel structures

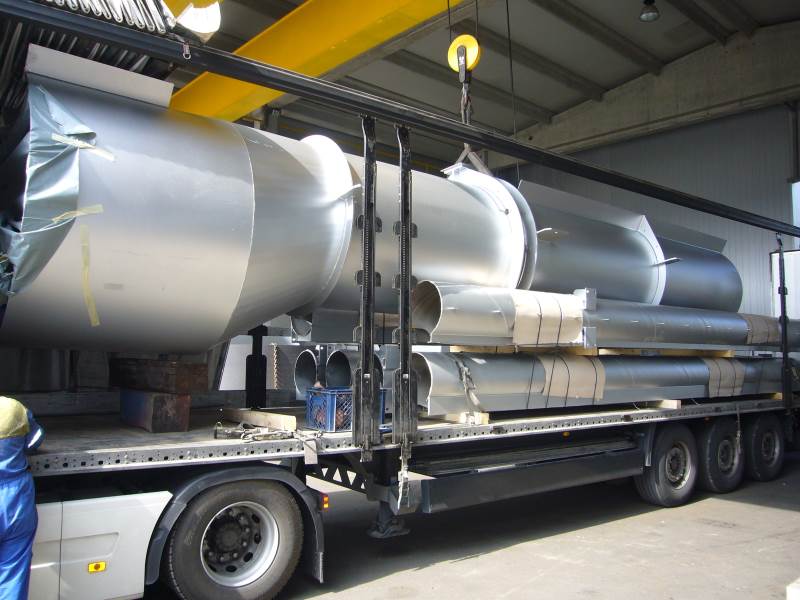

Steam ducts
Heat exchangers
Propulsion fans, axial blowers
Ribbed tubing
Compensators and valves
Accessories such as condensate tanks and drainage tanks
Air removal equipment
Tube piping with pumps and associated fittings
Instrumentation

The prefabricated parts are delivered to various construction sites across the region where they are professionally erected.

Acc Heating Exchanger Fitters Valves Pipings Pumps Fittings Instrument 12

Ribbed Tubing Comdensators Duct Plate Steelworks 13

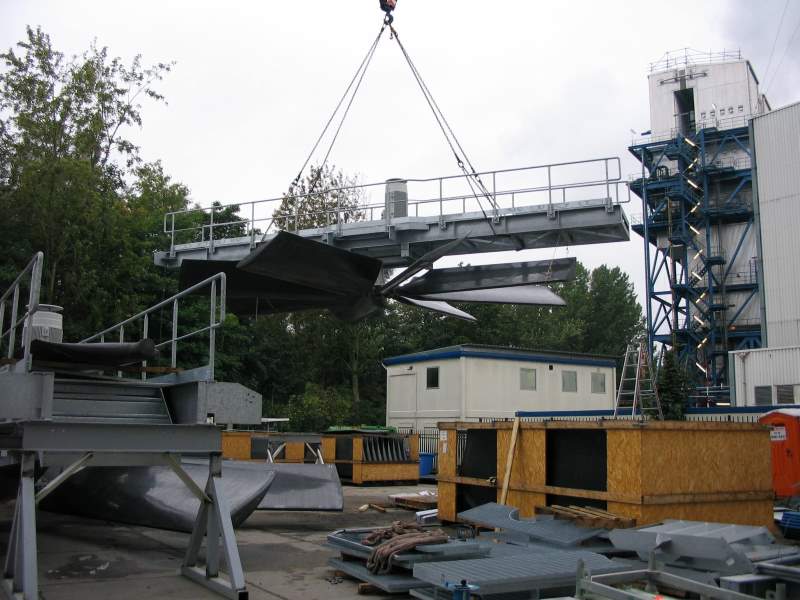

Bridging walkway prefabricated ACC Building Upper Structures 14

Propulsion Fans Axial Blowers ACC Air cooled Condensers 15

Condensate Tanks Drainage Tanks Air Removal Equipment 17

Tube piping with pumps And associated fittings 18

power plant thermal ACC facilities completed steel structure cladded 19
