3-Phase Separation Inconel Cladded Steel Slug Catchers at LNG Facility

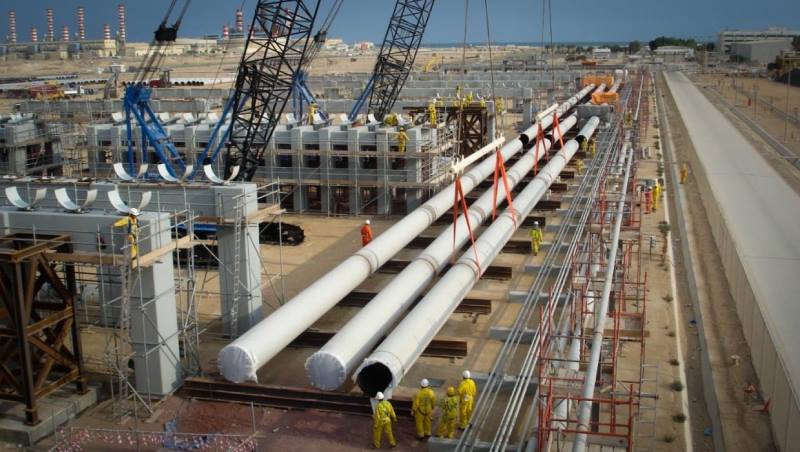

3 Phase Separation Inconel Cladded Steel Slug Catchers at LNG Facility 01

3 Phase Separation Inconel Cladded Steel Slug Catchers at LNG Facility 01

Two of fourteen (14) 3-phase slug catchers . Due to the extreme conditions of the process fluids, the carbon steel plate was HIC and SSC tested, and portions of line pipe and liquid manifolding was cladded with Inconel, all in effort to limit corrosion. In addition, to help set an interface for the hydrocarbons and water within the system, the proprietary TFES S-bend was implemented for 3-phase separation.

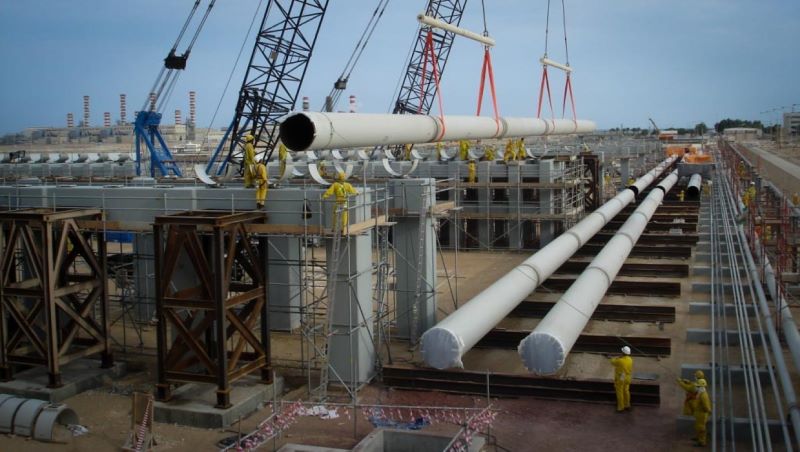

Qatar slug catcher 3 phase process fluid HIC SSC Tested Liquid Manifolding 02

The highlights advanced engineering and materials solutions implemented in the design of slug catchers at a large LNG facility to address extreme operational challenges, particularly corrosion and multiphase separation. Here's a breakdown of the key components and their significance:

1. Slug Catchers

Purpose: Slug catchers are critical in oil/gas pipelines to manage "slugs" (large, intermittent volumes of liquid) in multiphase flow (gas, oil, water). They ensure stable flow to downstream equipment (e.g., separators, compressors) and prevent process upsets.

Scale: Two of fourteen units are mentioned, indicating a massive system tailored for high-capacity LNG production.

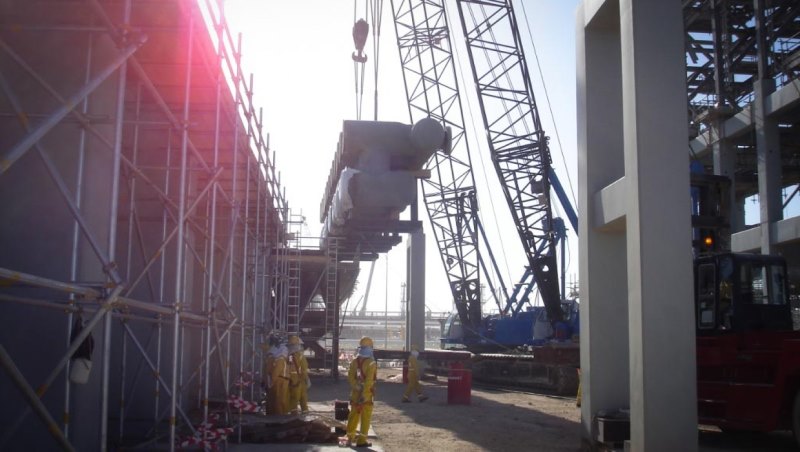

qatar slug catcher TFES S bend 3P Seperation LNG Facility Multiphase Components 03

2. Material Challenges & Solutions

HIC/SSC Testing:

HIC (Hydrogen-Induced Cracking): Occurs in wet H₂S environments, where atomic hydrogen penetrates steel, causing internal cracks.

SSC (Sulfide Stress Cracking): Cracking under tensile stress in sour (H₂S-containing) environments.

Carbon steel plates were rigorously tested to ensure resistance to these failure modes, critical for sour service (common in LNG feed gas with contaminants).

Inconel Cladding:

Portions of line pipes and liquid manifolds were cladded with Inconel (e.g., Inconel 625), a nickel-chromium superalloy resistant to corrosion, pitting, and cracking. This protects vulnerable areas (e.g., welds, bends) from aggressive process fluids (e.g., acidic condensate, chlorides).

Cladding (vs. solid alloy) balances cost and performance, using carbon steel for structural strength and Inconel for corrosion resistance.

Oil Gas Pipeline Slug Catcher Finger Type Multiphase Flow Downstream Equipment 04

3. 3-Phase Separation with TFES S-Bend

Proprietary S-Bend Design: Likely a gravity-based or cyclonic separator using flow dynamics to create distinct interfaces between gas, hydrocarbons, and water. The "S-bend" geometry may enhance separation by inducing turbulence changes or centrifugal forces.

Interface Control: Critical for efficient LNG processing, as water and heavy hydrocarbons must be removed to prevent freezing in cryogenic equipment or contamination in LNG product.

Prevent Prcess Upset LNG Production HIC SSC Testing Hydrogen Induced Cracking 05

4. Operational Context

Extreme Conditions: High pressure, temperature fluctuations, and corrosive contaminants (H₂S, CO₂, chlorides) necessitate robust materials and separation systems.

Corrosion Mitigation: The combination of HIC/SSC-tested carbon steel, Inconel cladding, and advanced separation reflects a layered defense against degradation, ensuring longevity and safety.

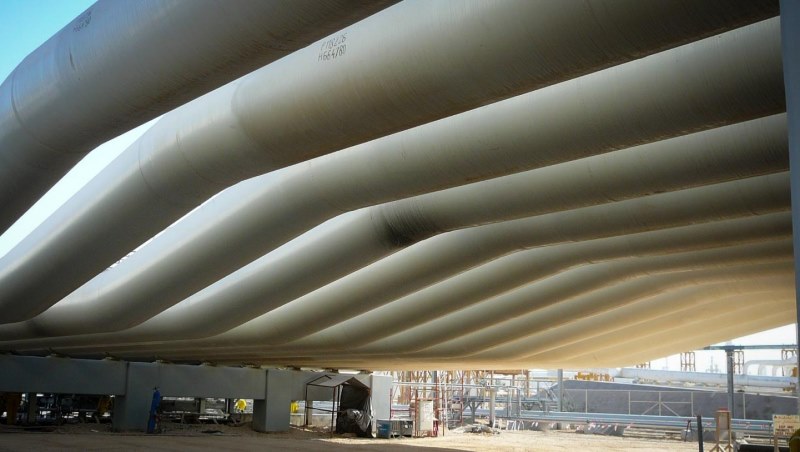

Sulfide Stress Cracking Sour Environment Inconel Cladding Nickel Chromium Superalloy 06

5. Strategic Significance

LNG Facility Reliability: These measures minimize downtime and maintenance in a high-value facility where unplanned shutdowns are costly.

Innovation: Proprietary technologies like the S-bend highlight the push for optimized separation efficiency in complex 3-phase systems.

In summary, the integration of material science (tested carbon steel, Inconel cladding) and innovative separation design (S-bend) ensures the slug catchers withstand harsh conditions while maintaining process integrity—key to operating the world’s largest LNG facility.

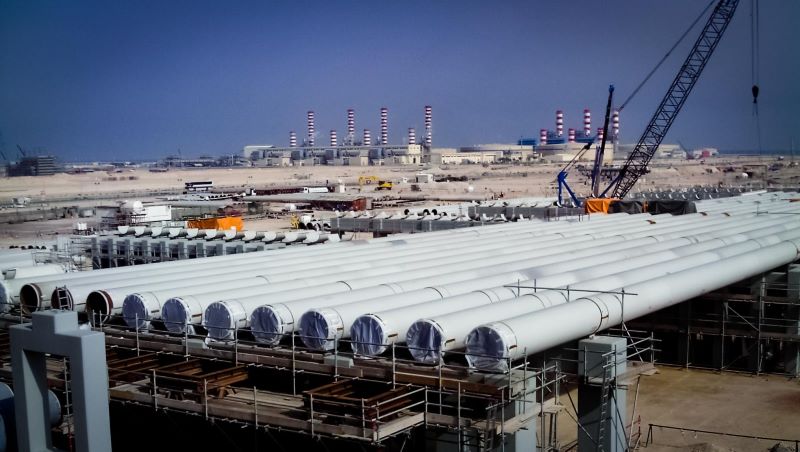

3 Phase Separation TFES S Bend Interface Control High Pressure 07
